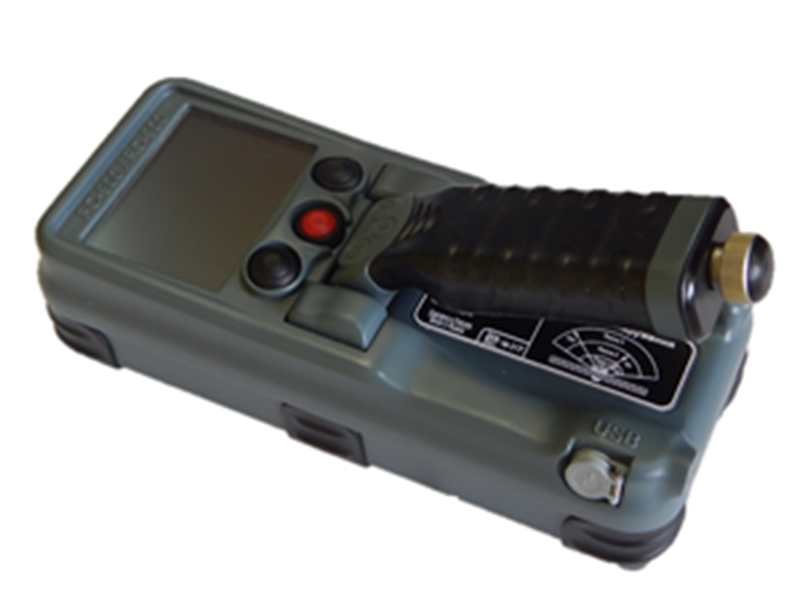

GPR Radar Detector RO-900

RO-900 - a portable radar, also called a wall visor, will detect people hidden behind reinforced concrete, brick, several walls during search, combat and rescue operations.

The manual wall visor produced by the Logis-Geotech company has no analogues, since allows you to detect people by breathing, detect living objects behind several walls.

Stenovisor Will Allow Law Enforcement Agencies, Special Purpose Units:

1. find people behind reinforces concrete, spaced apart walls;

2. to find people under the rubble during rescue operations;

3. determine the distance to the object;

4. determine the trajectory of the object.

An analogue of the device - "RO-400 2D" was adopted by the FSB of the Russian Federation, won a number of comparative tests, and is supplied to the security services of the Middle East.

Motion and Breath Detection

At the same time, two algorithms for detecting living objects work - by motion and by respiration.

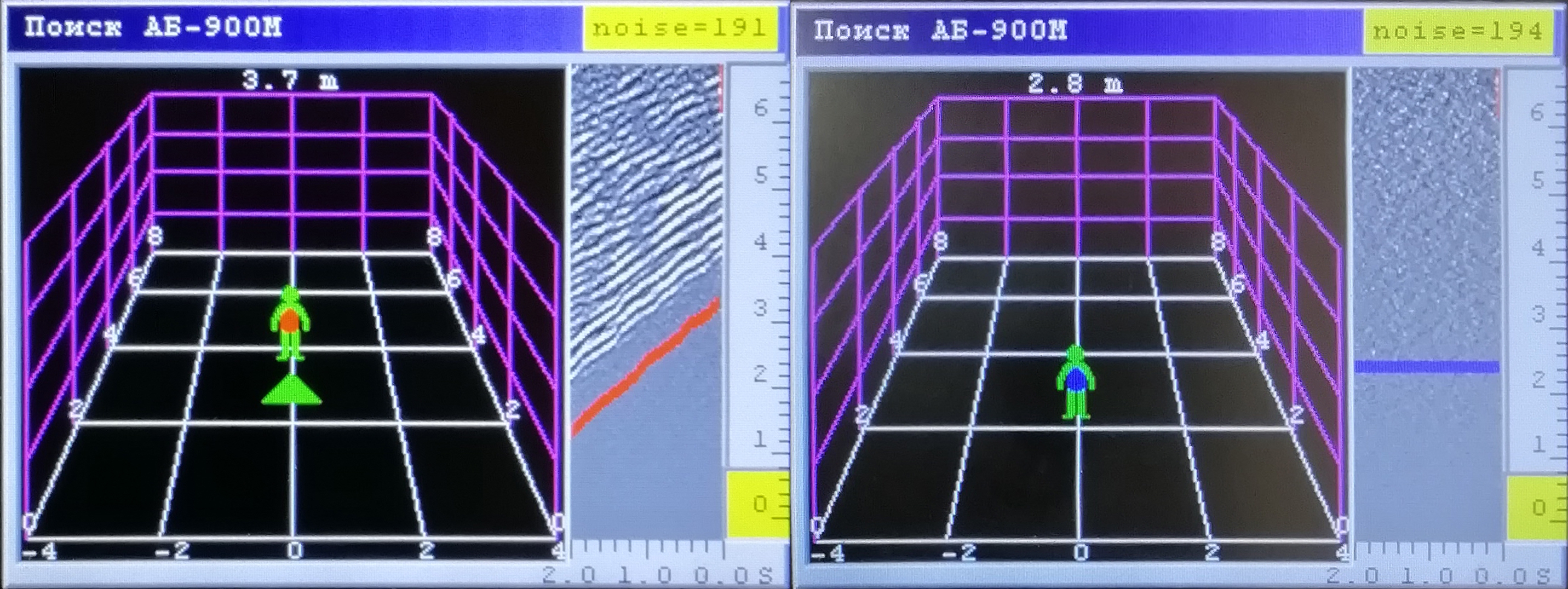

Motion detection results (red marks on the radar-gram) are updated at the rate of information arrival.

Breath detection results (blue marks on the radar-gram) are issues every 20 seconds if motion is not detected.

Wall Visor Detection Range:

1. Distance of detection of people by movement through reinforced concrete walls with a thickness of 0.4m - not less than 8.0m;

2. Distance of detection pf people by breathing through brick walls 0.25m thick is up to 5.0m;

Features of the RO-900 Portable Radar Detector:

1. portable, lightweight, device weight - 0.95kg;

2. simple user interface;

3. the maximum detection range is 15m;

4. allows you to quickly respond to changes in the situation;

5. dual detection algorithm (movement/ breathing).

The Composition of the Radar Detector

1. Detector radar RO-900

2. RO-900 bag

3. USB flash drive with software

4. The passport

5. Manual

6. Case RO-900

7. USB cable

8. Sysmax charger with cables (2 pcs)

9. CR123 batteries - 4 pcs

10. CR123 batteries per pack - 4 pcs

11. Flannel napkin

12. KSMG silica gel bag

13. Packaging

Specifications

1. Tested wall material: brick, concrete, reinforced concrete

2. Maximum detection range of people, not less than 15m

3. Maximum depth of product detection in the GPR mode, not less than 0.5m (for environments with low attenuation)

4. Preparation time for work, no more than 1 min

5. Dimensions 252*105*85mm

6. Weight (with batteries) 0.85kg (0.95kg)

7. Operation temperature range from -20 to + 50˚C

8. Protection against external influence IP65
