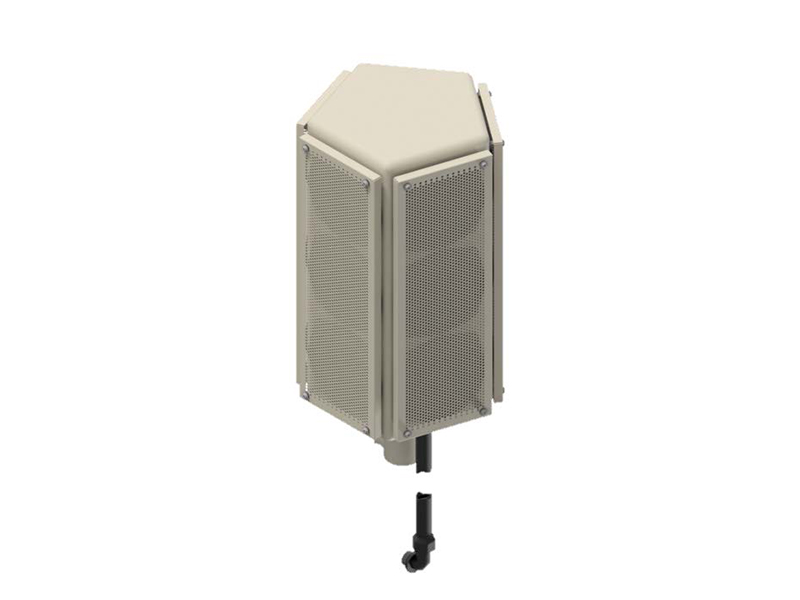

Encompass Notification System MA-1

Product features

- Signal conditioning optimized for maximum power and intelligibility for HyperSpike® MA-Series Speakers

- Smart self-protection, speaker monitoring, and fault reporting

- Ruggedized construction and fully weatherized

- Customer equipment space and access to back-up power

- Continuous full-volume operation while switching to/from backup power

- Continuous AC operation (AC primary power with DC backup)

Ideal for rapid field deployment or static mounting, the MA-1 is flexible and configurable for any situation, making it the "clear" choice for alerting and facilitating a response before, during, or after an event. With all five sides engaged, the MA-1 is capable of an acoustic output of 143 dB and broadcast range of up to 4 square miles.

Engineered and designed with the latest technology in mass notification control systems; when paired with a HyperSpike® MA series speaker, the Encompass Amplifier Cabinet is optimized to produce clear and authoritative voice commands with an acoustic footprint of up to 12 square miles.

The cabinet automatically switches to the best power source, performs self-diagnostics, and reports status to the outside world through industry-standard Form C relay fault reporting. Packaged in a NEMA 4 enclosure (4X upgrade available) with a pad-lockable door, the Encompass Amplifier Cabinet is ready to be installed in either indoor or outdoor applications.

When making announcements, the HyperSpike® Encompass Amplifier Cabinet responds at a moment’s notice and will continue to broadcast as long as required. With best in class response time and thermal fold-back capabilities, your message is broadcast regardless of its length.

Right-Size Your Mass Notification

With the ever-increasing need for flexibility in mass notification, the HyperSpike® MA-1 allow customizable mass notification. One or multiple sides can be activated, providing right-sized sectored notification. With minimal influence on output, the MA-1 can be used where selective notification is necessary to minimize the effect on neighboring areas.

- Peak SPL: 143dB

- Range of Use: 4 square miles

- Voice intelligibility: Excellent

- Weight: 16-48 lbs

- Frequency Response: 125 Hz - 8 kHz

- Power: 1600W

- Acoustic Beam: 90-360˚

- Environment: Outdoor

Applications

- Emergency Notification

- Force Protection

- Disaster Relief Alerting

- Temporary Alerting

- Military Security

- Campus Security

- Flight Decks

- Manufacturing Facilities

- Arenas

- Indoor Facilities
